872-505

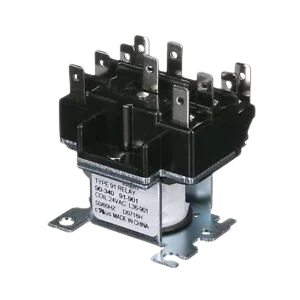

This heavy-duty DPDT (Double Pole Double Throw) relay is a versatile switching solution designed for a wide range of HVAC and appliance control systems. Engineered with a 24VAC coil, this relay allows low-voltage thermostat or control board signals to safely manage high-power electrical loads on 125V or 250V circuits. It is a critical component for furnace blower motors, air conditioning compressors, and heat pump fans, providing reliable multi-circuit control. Whether used in residential heating systems or commercial refrigeration equipment, this electromagnetic relay ensures consistent performance and longevity in demanding environments. This general-purpose relay is ideal for technicians and repair experts looking to restore proper switching functionality to climate control hardware and motor-driven appliances.
Type: Electrical HVAC Relay
Size: Standard compact frame
Application: Commonly utilized in furnace control systems, central air conditioning units, heat pumps, commercial refrigeration, and general-purpose motor switching applications.
Specifications: Coil Voltage: 24VAC; Contact Rating: 125/250VAC; Circuitry: Double Pole Double Throw (DPDT); Application: Inductive and resistive load switching.
