100-222

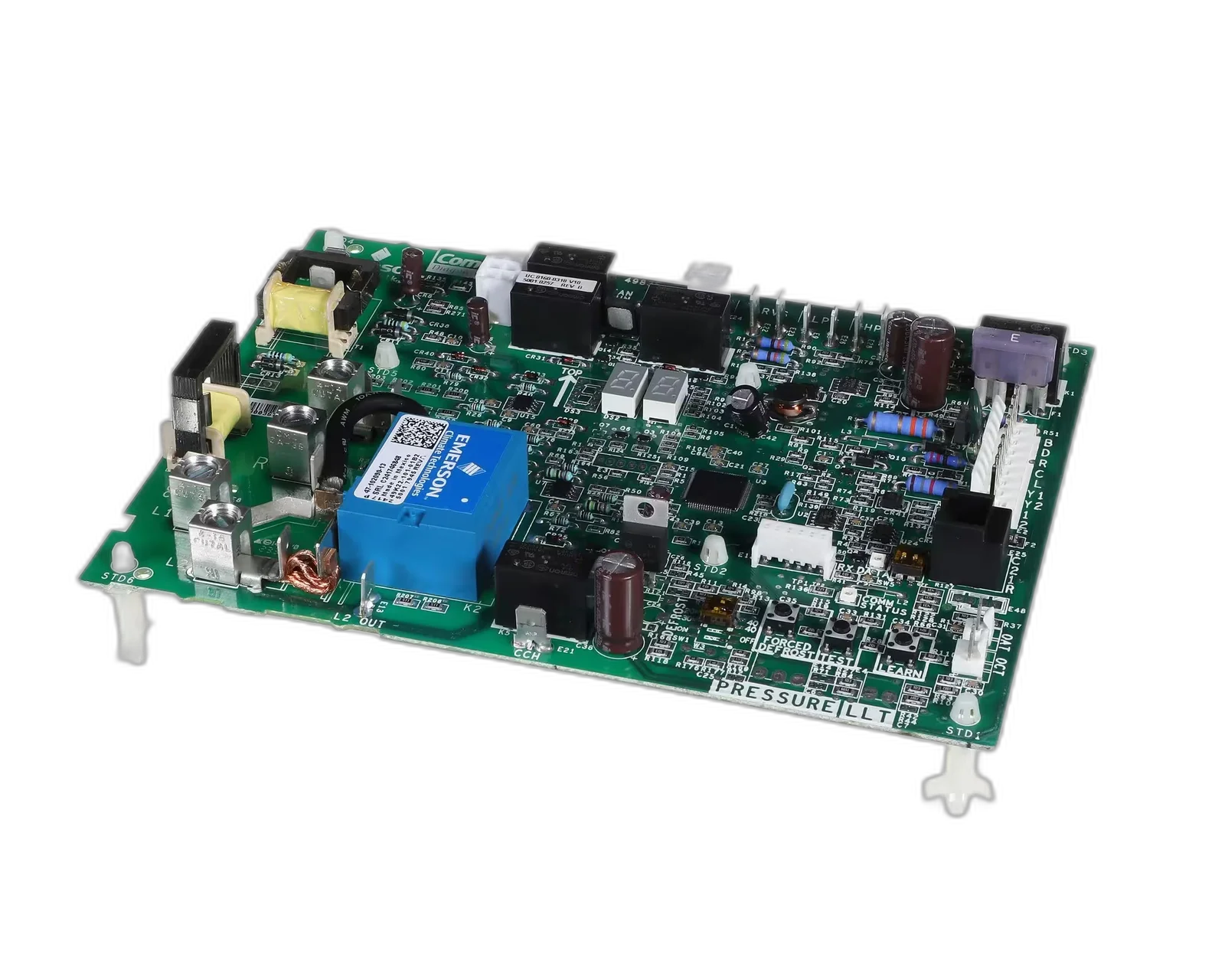

This advanced communicating control board serves as the primary electronic brain for high-efficiency HVAC systems. Designed to facilitate seamless data exchange between the outdoor condensing unit and the indoor air handler or furnace, this circuit board manages complex ignition sequences and modulating functions to ensure precise temperature regulation. As a critical component for climate control systems, it monitors system performance, regulates power to the compressor and fan motors, and provides diagnostic feedback. Replacing a faulty control module with this professional-grade circuit board can resolve issues such as communication errors, system startup failures, and inefficient cooling or heating cycles, ultimately restoring the reliability and energy efficiency of your central air conditioning or heat pump system.
Type: HVAC Communicating Control Board
Size: Medium
Application: Designed for use in residential and light commercial central air conditioning units and heat pump systems featuring communicating technology and modulating performance capabilities.
Specifications: Features multi-pin harness connectors, integrated diagnostic LED indicators, solid-state circuitry for modulating control, and specialized communication protocols for high-efficiency HVAC networking.
