040-636

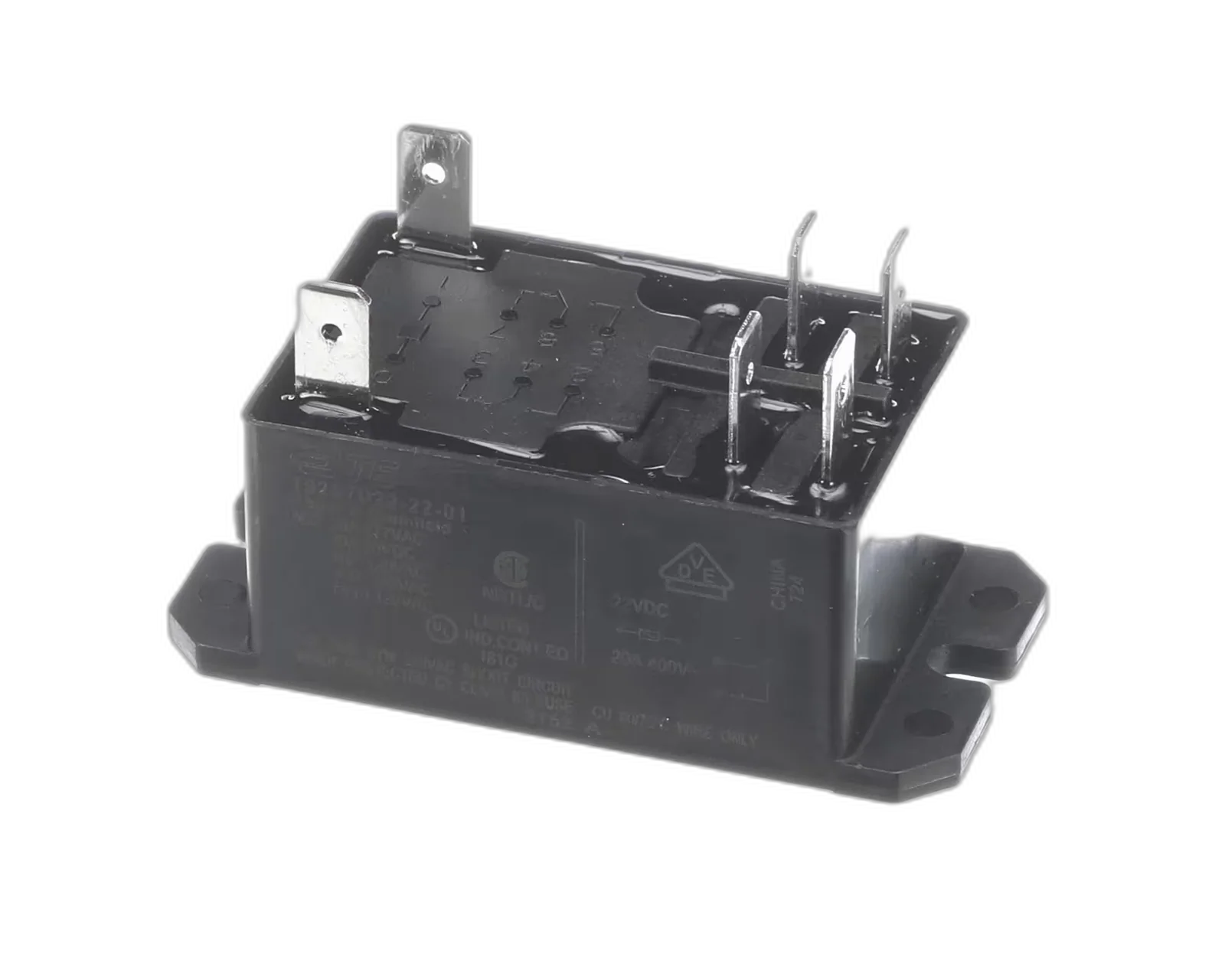

This heavy-duty 30 Amp DPDT relay is a critical electrical component designed for high-performance switching in HVAC systems and large household appliances. Engineered with a 24-volt coil, this Double Pole Double Throw (DPDT) relay allows for the simultaneous management of two separate circuits, providing versatile control for complex electrical loads. It is commonly used to engage high-current components like compressors, fan motors, and heating elements using a low-voltage signal from a thermostat or control board. If your air conditioner or heat pump is failing to cycle properly or experiencing power delivery issues, this reliable replacement relay ensures efficient operation and protects your system from electrical failure. Its robust construction is built to handle the high-amperage demands of modern climate control equipment.
Type: Electrical Relay
Size: Standard medium-duty relay
Application: Commonly used in residential and commercial HVAC units, central air conditioning systems, heat pumps, and heavy-duty appliances requiring high-current switching via a low-voltage control circuit.
Specifications: Coil Voltage: 24V AC/DC; Contact Rating: 30 Amps; Configuration: Double Pole Double Throw (DPDT); Terminal Type: Standard spade or screw terminals for secure electrical connections.
