020-679

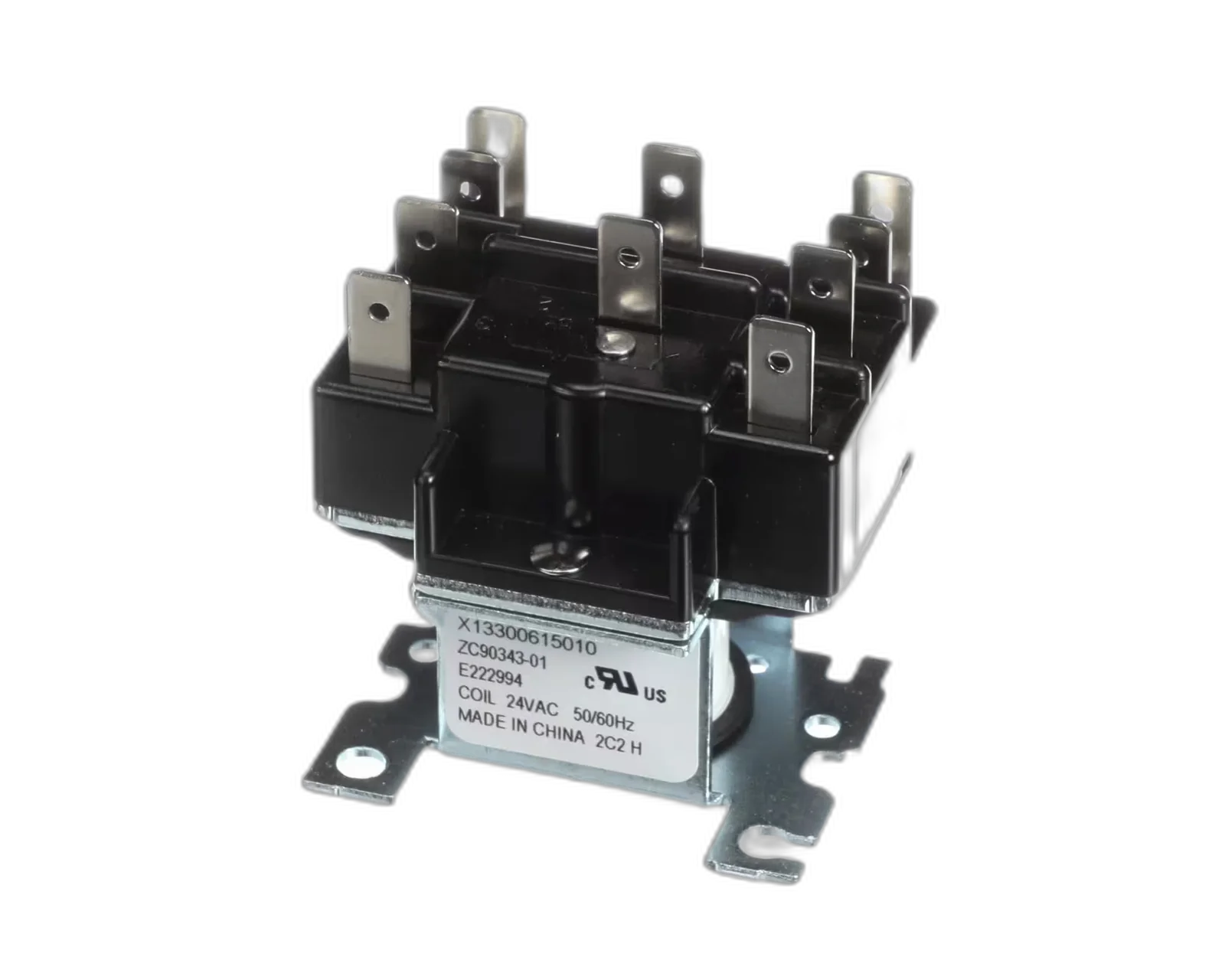

This premium DPDT general-purpose relay is a vital component for restoring reliable electrical switching in your HVAC systems and large appliances. Designed with a 24V AC 50/60Hz coil, this double-pole double-throw (DPDT) relay allows for the simultaneous control of two independent circuits, making it an essential part for managing fan motors, heating elements, and cooling compressors. Whether you are troubleshooting a furnace that won't kick on or an air conditioning unit with cycling issues, this heavy-duty relay provides the durability needed for high-frequency switching. It acts as a primary control interface between low-voltage thermostats and high-voltage appliance components, ensuring safe and efficient operation of heat pumps and air handlers.
Type: Electrical Relay
Size: Standard general-purpose relay
Application: Commonly used in HVAC systems, central air conditioners, heat pumps, furnaces, and commercial refrigeration units for motor starting and circuit logic control.
Specifications: Configuration: Double Pole Double Throw (DPDT); Coil Voltage: 24VAC; Frequency: 50/60Hz; Application: General Purpose Switching.
