020-010

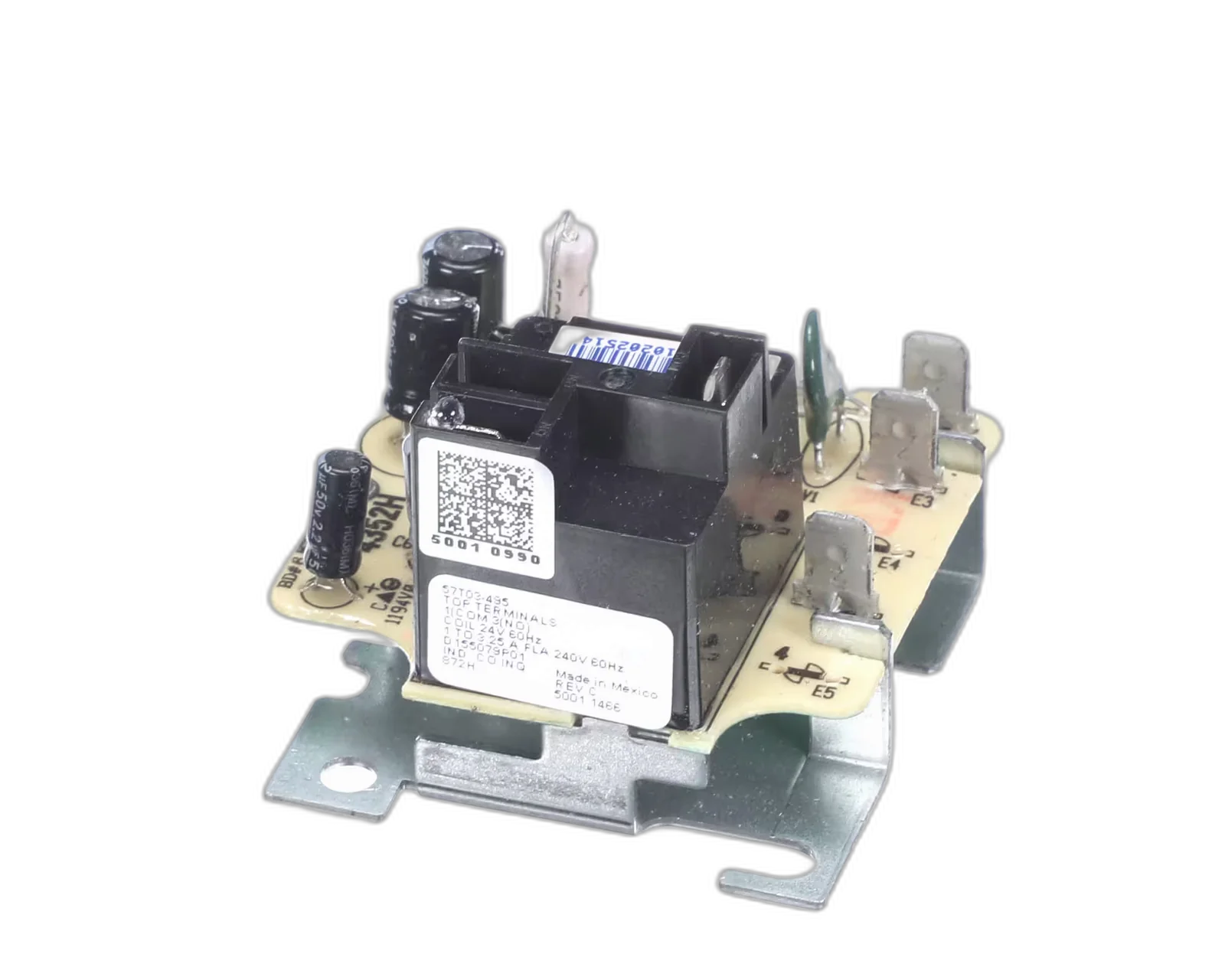

Ensure optimal performance and protect your heating and cooling equipment with this professional-grade Time Delay Relay Board. Designed specifically for HVAC systems, this 24-volt coil relay acts as a critical safety component by preventing short cycling—a common cause of premature compressor and motor failure. By managing the timing of electrical signals, this board allows system pressure to equalize before a restart occurs, significantly extending the lifespan of your air conditioner or heat pump. Whether you are performing a routine repair or upgrading your system’s electrical controls, this 60Hz compatible relay provides the reliable switching and timing accuracy required for efficient climate control. This essential electrical component is a common replacement part for restoring proper sequence of operation in residential split systems.
Type: Electrical Relay Board
Size: Small
Application: Used in central air conditioning units, heat pumps, and furnace systems to provide time-sequenced control and compressor protection.
Specifications: Coil Voltage: 24V AC; Frequency: 60Hz; Function: Time Delay Sequence; Connection Type: Multi-pin terminal interface
