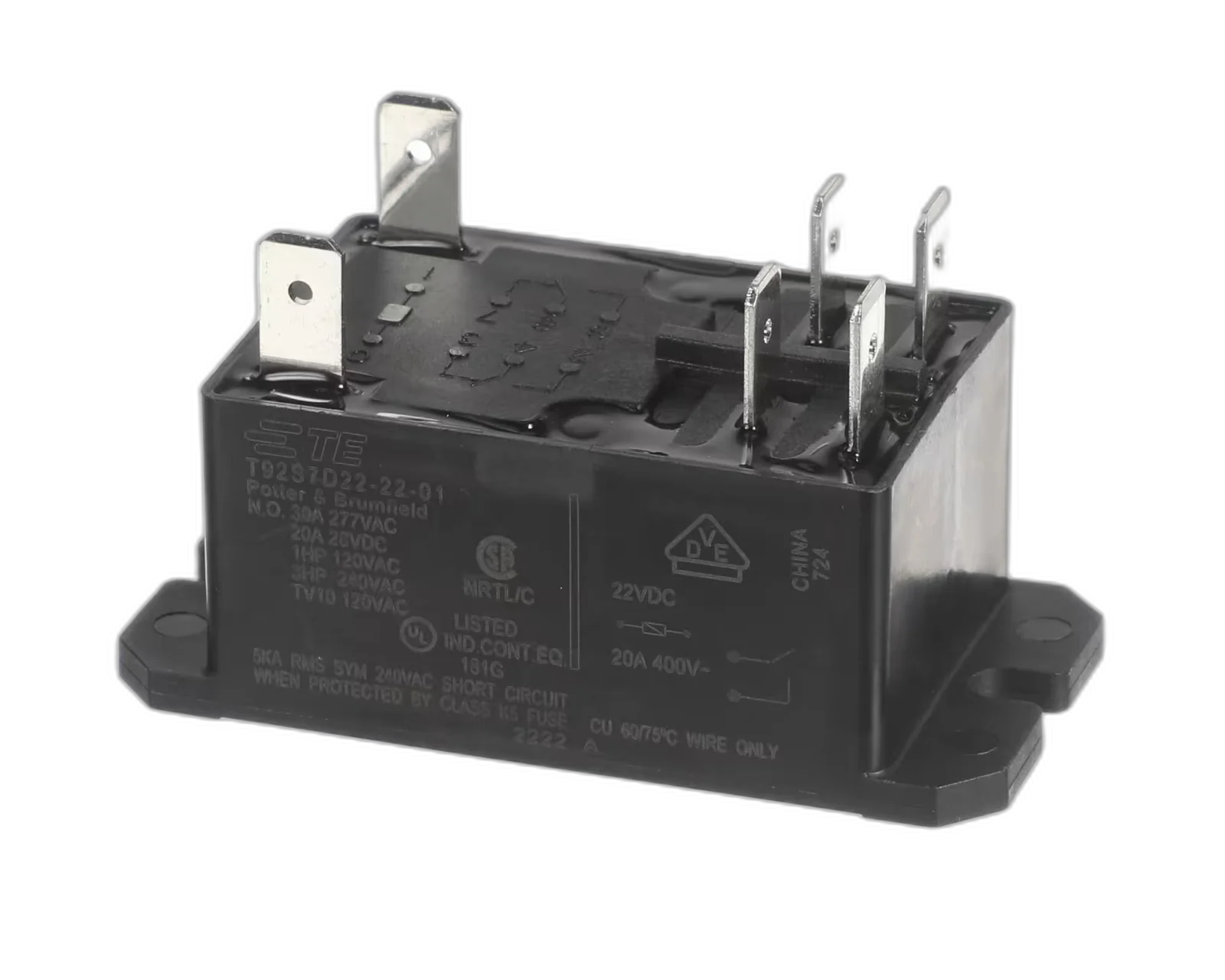

This heavy-duty 22 Volt DC Relay is a vital electrical component designed for high-performance HVAC systems, particularly within electric heat kits and air handler assemblies. Featuring a Double Pole Single Throw (DPST) configuration and a Normally Open (NO) contact state, this relay serves as a critical switch that allows a low-voltage DC control signal to manage high-voltage power loads safely. It is an essential replacement part for restoring functionality to heating elements or blower motors that fail to engage during the heating cycle. Engineered for durability and precise electrical switching, this relay ensures reliable operation and long-term stability for residential and commercial climate control equipment.
Type: HVAC Electrical Relay
Size: Small
Application: Used in residential and commercial heating equipment, specifically within electric heat kits and air handlers to regulate power to high-draw electrical components.
Specifications: Coil Voltage: 22V DC; Switch Configuration: DPST (Double Pole Single Throw); Contact State: Normally Open (NO); Application: Load switching for HVAC electrical circuits
