000-852

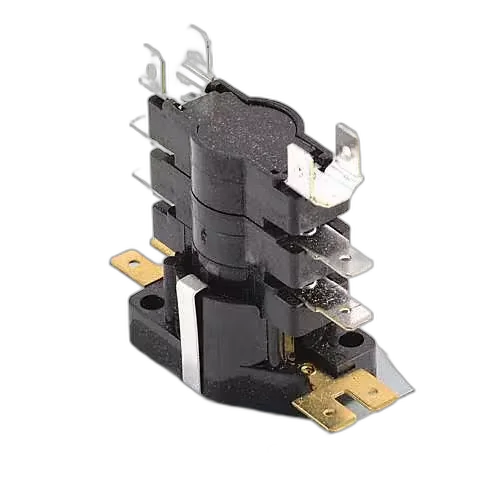

This professional-grade 24-volt triple-stacked time delay relay is an essential electrical component for optimizing the performance and longevity of HVAC systems and heavy-duty appliances. Designed to manage the sequencing of electrical loads, this relay prevents equipment damage caused by rapid short-cycling of motors and compressors. It features a versatile triple-stack configuration that allows for complex multi-stage control, with fully adjustable 'on' and 'off' delay settings ranging from 1 to 110 seconds. By regulating when specific components activate or deactivate, this relay ensures smooth startups for blower motors and heating elements, enhancing energy efficiency and reducing wear on transformers and contactors. Ideal for technicians and DIY repair enthusiasts alike, this reliable 24V timing module is a key solution for troubleshooting furnace sequencing and air handler control circuits.
Type: Electrical Time Delay Relay
Size: Standard industrial control module
Application: Used primarily in residential and commercial HVAC equipment, electric furnaces, and air handlers to sequence heating elements and protect blower motors from electrical surges.
Specifications: Input Voltage: 24V AC/DC; Configuration: Triple Stacked; On-Delay Range: 1 to 110 Seconds (Adjustable); Off-Delay Range: 1 to 110 Seconds (Adjustable); Function: Time Delay Sequence Control.
