000-159

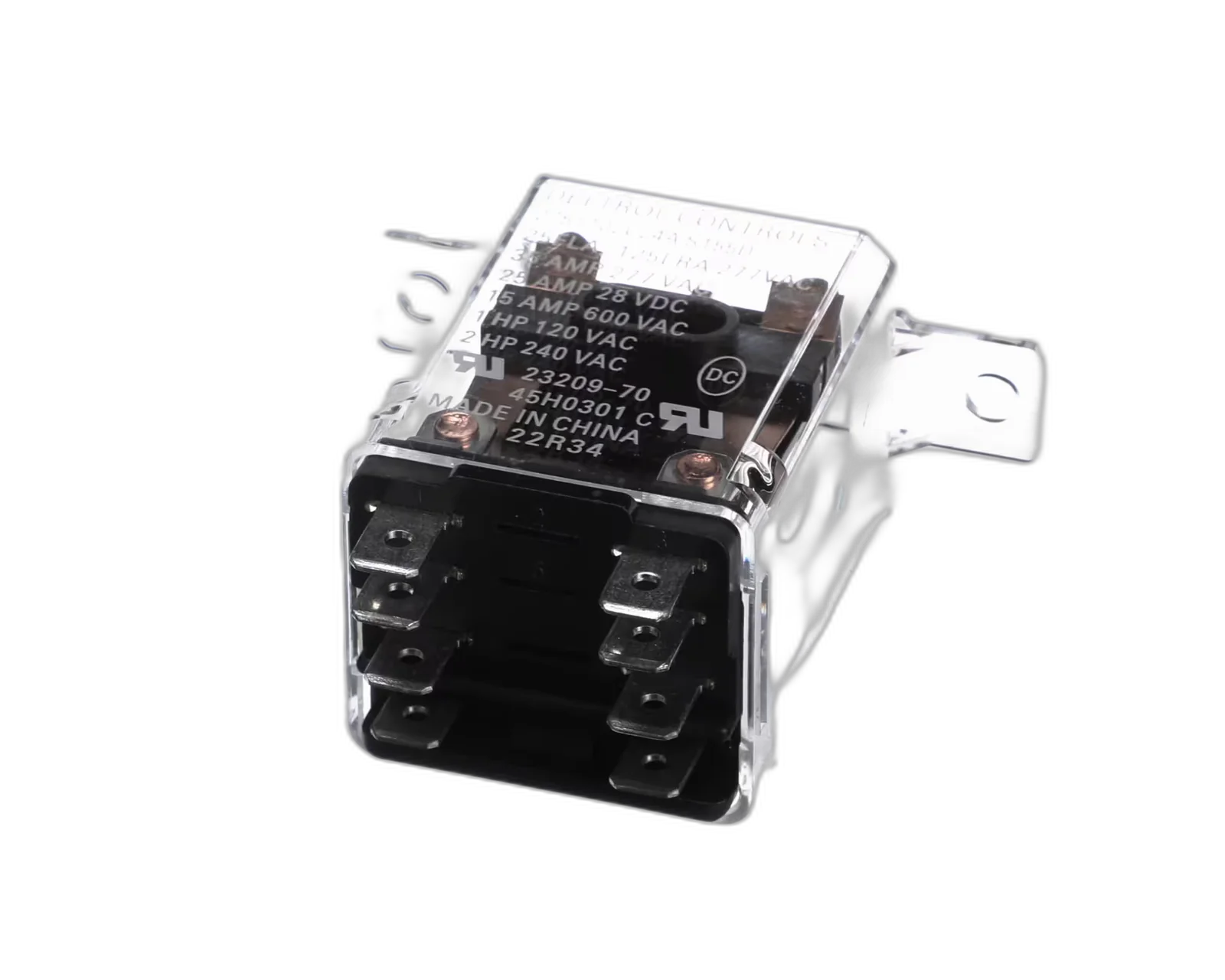

This heavy-duty DPDT (Double Pole Double Throw) relay is a vital electrical component for modern HVAC systems, designed to provide reliable switching for heating and cooling equipment. Featuring a 24VAC coil, this relay acts as an electromagnetic switch that allows low-voltage thermostat signals to control high-voltage components such as blower motors, fans, and compressors. It is a common replacement part for central air conditioning units and heat pumps when the system fails to start or exhibits signs of electrical chatter. Engineered for durability and consistent performance, this relay ensures efficient power distribution and protects sensitive control boards from electrical surges, making it an essential component for maintaining optimal climate control and energy efficiency in residential or commercial units.
Type: HVAC Electrical Relay
Size: Standard compact electrical relay
Application: Commonly used in central air conditioning systems, heat pumps, and furnace control circuits to manage motor starting and auxiliary heating elements.
Specifications: Coil Voltage: 24VAC; Contact Configuration: DPDT (Double Pole Double Throw); Switch Type: Electromagnetic
