000-073

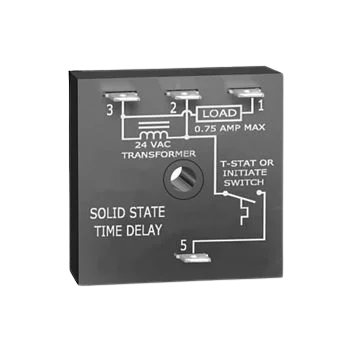

This high-performance 24-volt time delay relay is designed for use in HVAC systems to optimize blower motor operation and protect electrical components. It features a specific timing sequence with a 1-second delay upon startup and a 45-second delay after the system shuts down. This functionality ensures that the air handler reaches proper speeds before moving air and allows the heat exchanger or cooling coils to dissipate remaining energy effectively after the cycle ends. Ideal for furnace and air conditioner repairs, this relay helps prevent rapid cycling and improves overall system efficiency. It is a vital component for maintaining consistent climate control and extending the longevity of residential heating and cooling equipment.
Type: HVAC Control Relay
Size: Compact
Application: Designed for air handlers, furnaces, and heat pump systems to manage motor timing and sequencing in 24V control circuits.
Specifications: Input Voltage: 24V AC; On-Delay: 1 Second; Off-Delay: 45 Seconds; Component Type: Solid State Time Delay Relay
