122-076

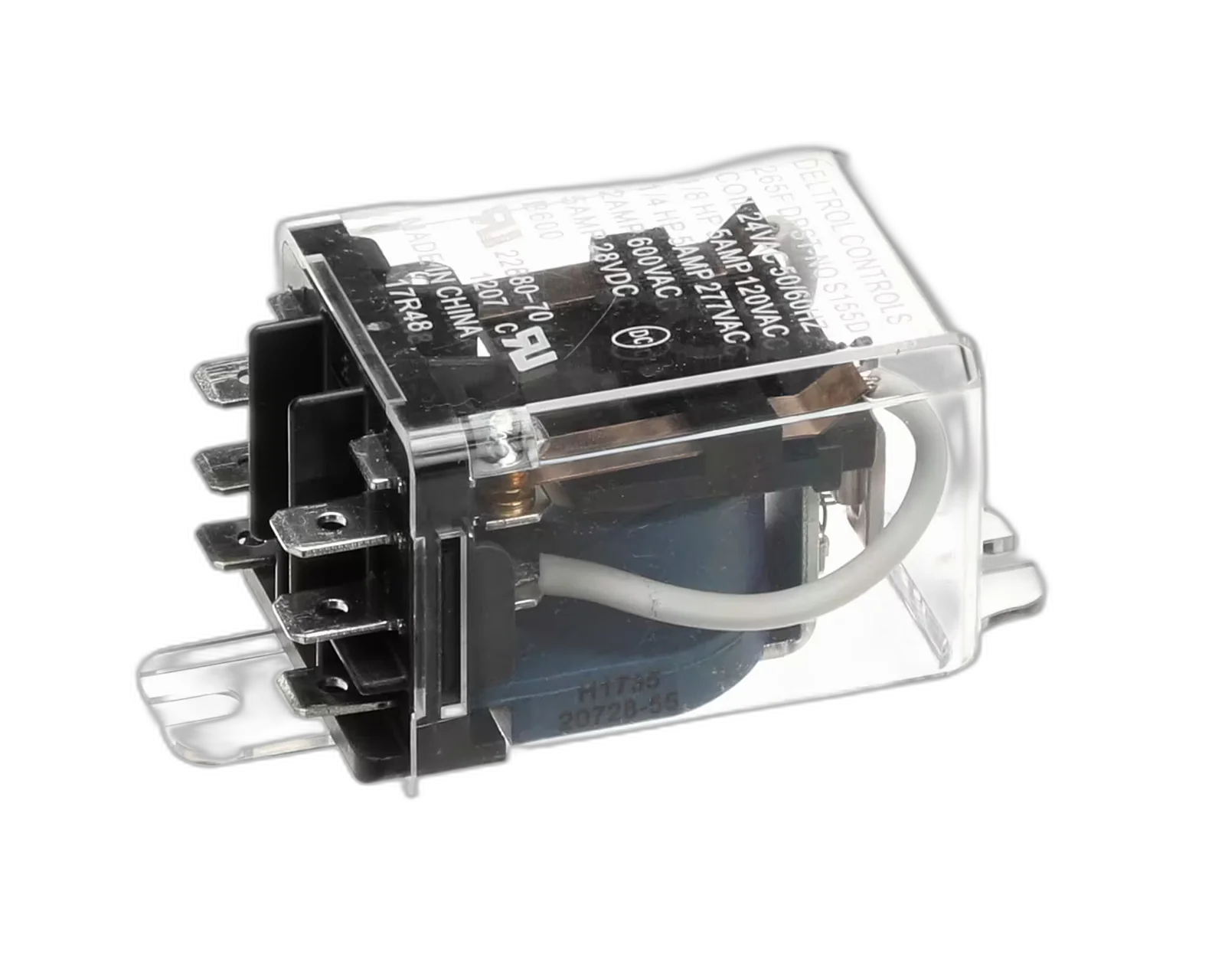

This heavy-duty control relay is a vital electrical component designed for HVAC systems, providing reliable switching for heating and cooling equipment. Featuring a Double Pole Single Throw (DPST) configuration, this relay allows for the simultaneous control of two separate circuits via a single 24V coil signal. It is an essential replacement part for restoring proper function to air conditioners, furnaces, and heat pumps where the internal switching mechanism has failed. Engineered to operate on both 50Hz and 60Hz frequencies, it ensures stable performance and efficient power management within your appliance's control board circuit. Using a high-quality relay helps prevent common issues such as intermittent system cycling, compressor startup failure, or unresponsive fan motors.
Type: Electrical Control Relay
Size: Small
Application: Commonly used in residential and commercial HVAC units, including air conditioning systems, electric furnaces, and heat pump air handlers to manage high-voltage components via low-voltage thermostat signals.
Specifications: Double Pole Single Throw (DPST) contacts; 24V AC Coil voltage; 50/60Hz frequency compatible; Electromechanical switching action.
